Junction Boxes and Edge Connectors for Blpv Modules

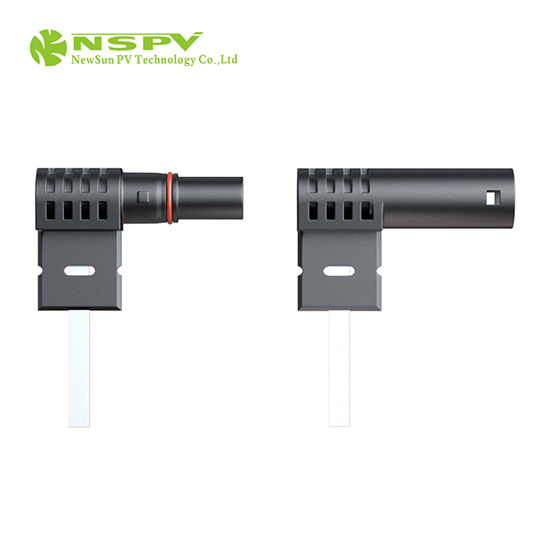

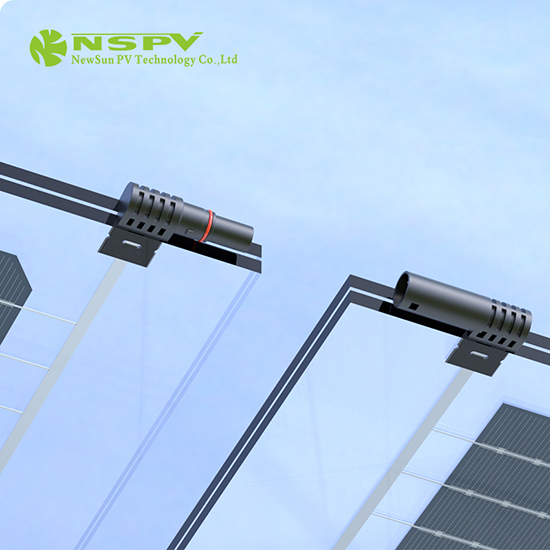

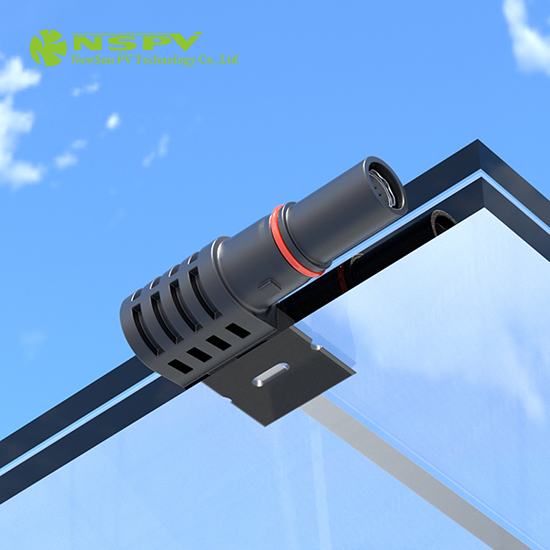

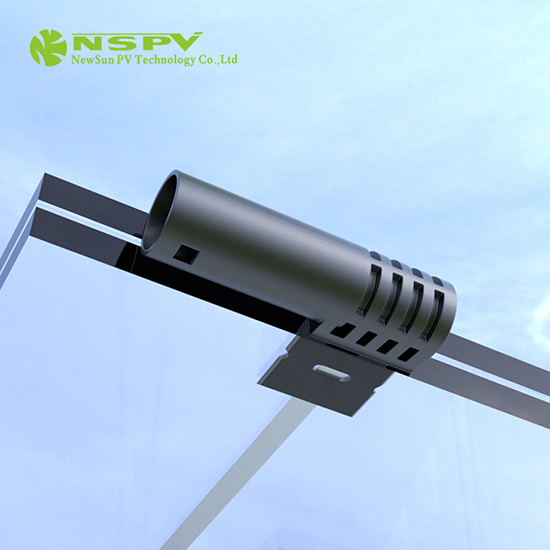

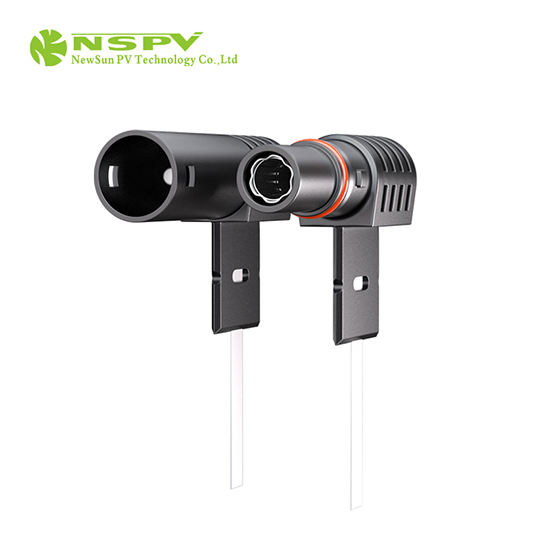

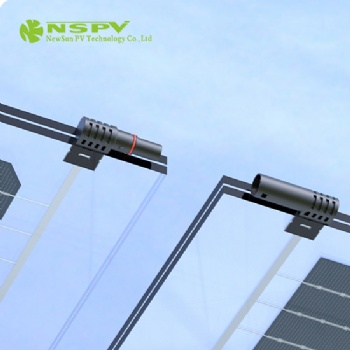

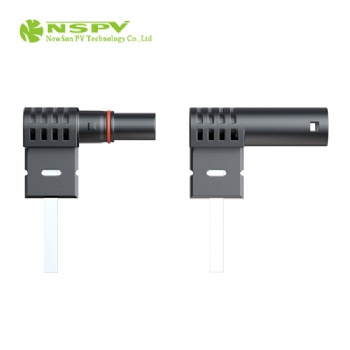

The slimline EC1A junction box can be mounted on the edge of double-sided panels without obscuring any solar cells. Where the panels are intended for use in a building integrated photovoltaics (BIPV) system, this enables the connector and cabling to be hidden within the façade frame.
INQUIRY

Insulation material	PPE/PA	Flame Class	UL94-V0
Rated voltage	1000V&1500VDC	Safety degree	II
Rated Impulse voltage	16KV	Installation type	Outdoor,UV resistant(F1)
Test voltage	8kV(50Hz,1min)	Ambient temperature range	-40℃…+85℃(IEC）
contact resistance	≤ 0.25 mΩ	Connecting system	Soldering for Ribbon Plug-in for connector
Contact material	Copper,Tin plated	Upper limiting temperature	150℃ (1H)
Degree of protection	IP65/IP67	Reference standard	IEC62852
Overvoltage category/Pollution degree	CATIII/2
