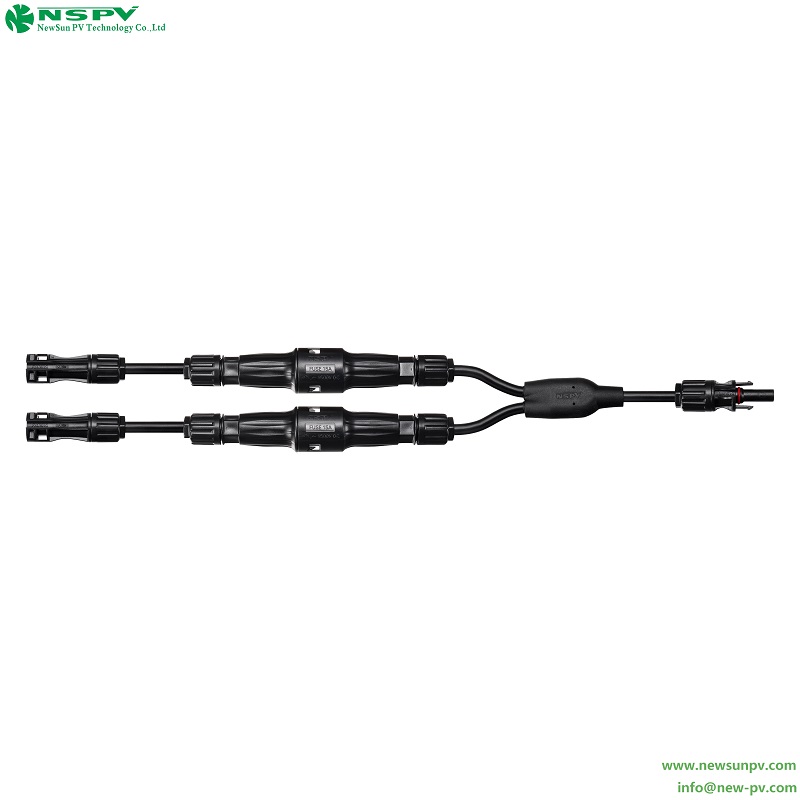

  • The MC4 1500V solar cable connector is used for solar system assembly, the waterproof class is IP68, it is a new type connector, detachable and good stability, convenient to install.
  • INQUIRY

Product Description

 PV 4.0 1500V DC Cable Connector

Insulation MaterialPPE
Rated Voltage1500VDC
Test Voltage8kV(50Hz,Imin)
Contact resistance<5mΩ
Contact materialCopper,Tin plated
Degree of protectionIP2X/IP68
Overvoltage category/Pollution degreeCATIII/2
Safety degreeII
Flame classUL94-V0
Insertion force/Withdrawal force≤50N/≥50N
Ambient temperature range-40℃...+85℃(IEC)
Suitable cable cross sections2.5~10mm²/14~6AWG
Connecting systemCrimp connection
Nut cap locking force0.8-1.0Nm
Upper limiting temperature110℃(IEC)



1500V DC PV 4.0 Fuse Connector

Insulation materialPPE
Rated current(Without fuse)30A
Rated voltage1500VDC
Test voltage8KV(50Hz,Imin)
Contact resistance<5mΩ
Contact materialCopper,Tin plated
Degree of protectionIP68
Rated Impulse voltage12KV
Fuse Specification1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,20A
Safety degreeII
Flame classUL94-V0
Insertion force/Withdrawal force≤50N/≥50N
Ambient temperature range-40℃...+85℃(IEC)
Upper limiting temperature110℃(IEC)
 Suitable cable cross sections2.5~10mm²/14~8AWG
 Suitable for fuse size(mm)10*85/14*65/14*85



1500V DC Cable

ConductorTinned stranded copper wire(IEC 60228 Class 5) 52/0.30±0.01mm
Conductor Stranded OD2.50mm
InsulationXLPE Black
Insulation Thickness≥0.7mm
ID4.1±0.1mm
JacketXLPE Black
Insulation Thickness≥0.8mm
OD5.8±0.1mm
MarkingTUV H1Z2Z2-K DC-1500V 4.0mm²
Rated Voltage1500V DC
Maximum resistance of conductor≤5.09Ω/km
Single cable current carrying capacity55A
Voltage test of finished cableAC 6.5KV,5Min/DC1500V,5min
