PV4.0 DC solar connector   > Mini connector >

  • Solar L mini cable connector
  • Solar L mini cable connector
  • Solar L mini cable connector
  • Solar L mini cable connector
  • Solar L mini cable connector
  • Solar L mini cable connector
  • Solar L mini cable connector
  • Solar L mini cable connector
Solar L mini cable connector Solar L mini cable connector Solar L mini cable connector Solar L mini cable connector Solar L mini cable connector Solar L mini cable connector Solar L mini cable connector Solar L mini cable connector

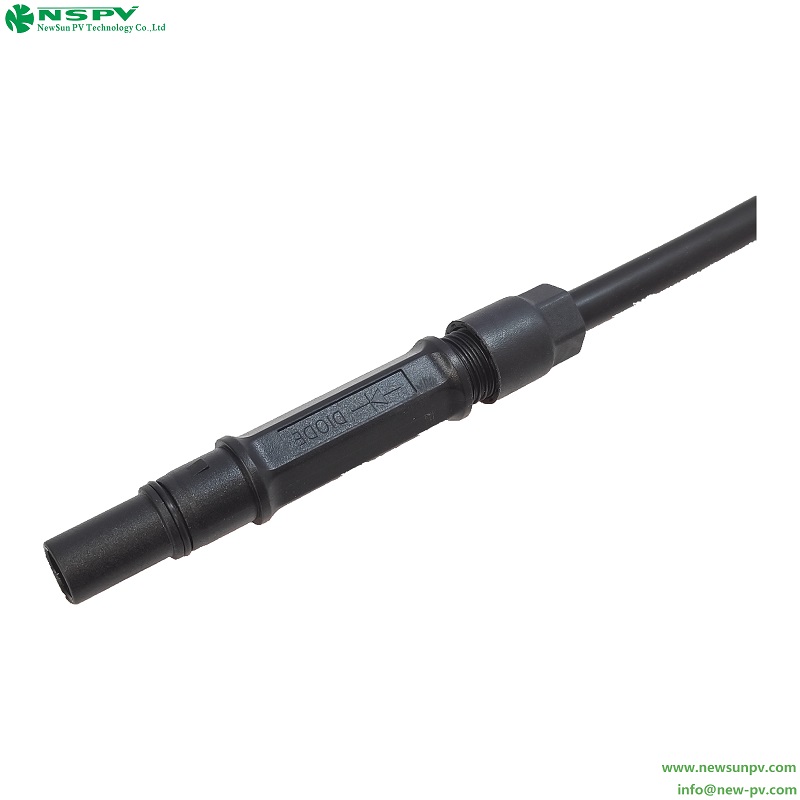

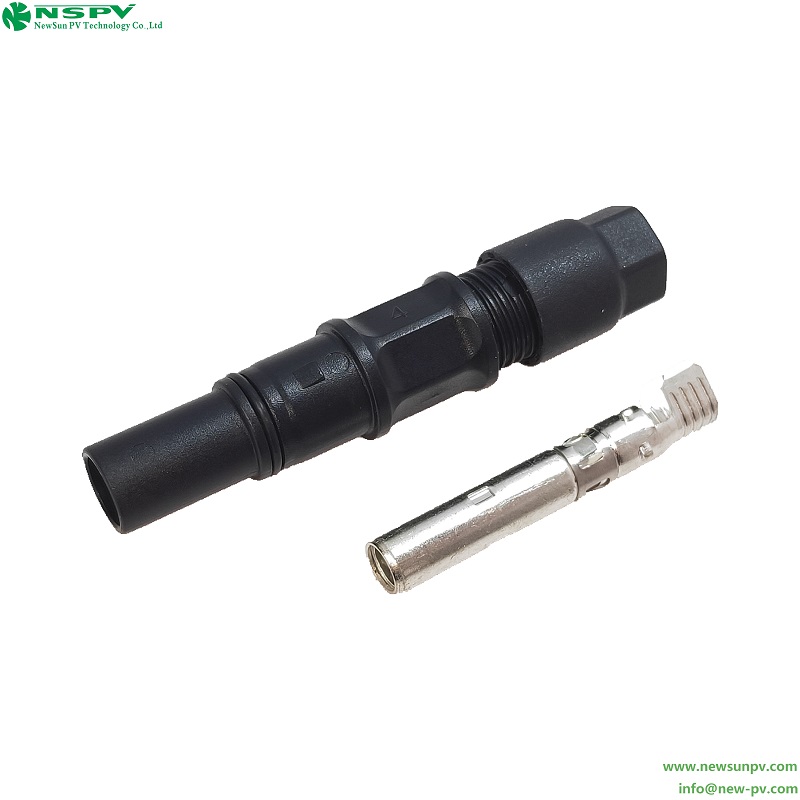

Solar L mini cable connector

  • Solar mini connectors are applicable in glass solar system with BIPV junction box.
  • INQUIRY

L_Mini Connector
Product Specifications
Insulation   materialPPE/PASafety   degree II
Rated   current20AFlame   classUL94-V0
Rated   voltage1500V   DCInsertion   force/Withdrawal force50N / 50N
Test   voltage8kV(50Hz,Imin)Ambient   temperature range-40…+85(IEC)
Typical   contact resistance0.25 mΩSuitable   cable cross sections1.5~4mm2 /16-12AWG
Contact   materialCopper,Tin   platedConnecting   systemCrimp   connection
Degree   of protectionIP67Nut   cap locking force1-1.5Nm
Cable   O.D. size Max.(mm)6.2Upper   limiting temperature110(IEC)
