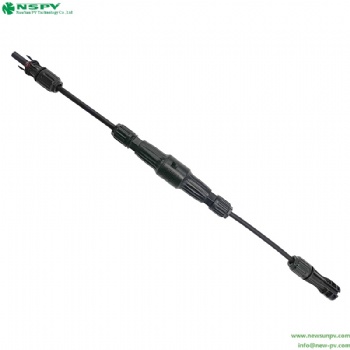

Solar Straight Cable Harness with inline fuse 1500VDC

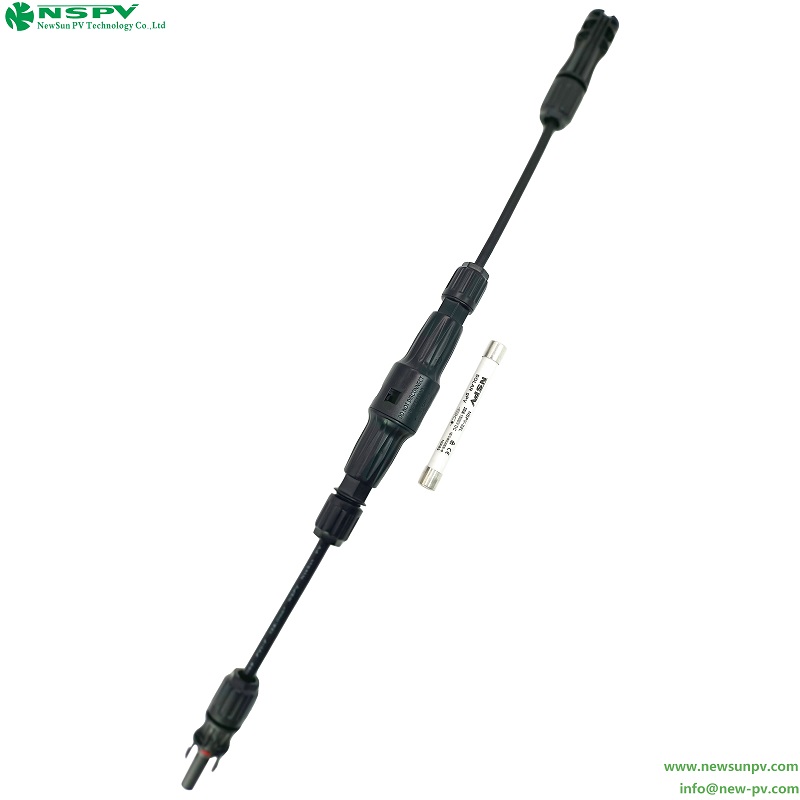

  • IP degree is 67, it can be customized according to your request, this is new type detachable connector, and the fuse can be replaced.
  • INQUIRY

Solar Straight Cable Harness with inline fuse 1500VDC
Product Specifications
Insulation materialPPE/TPESafety degree II
Rated current30A without fuseOvervoltage   category/Pollution degreeCATIII/2
Rated voltage1500VDCFlame classUL94-V0
Test voltage8kV(50Hz,Imin)Ambient temperature   range-40…+85(IEC)
Typical contact resistance0.25mΩSuitable cable cross   sections2.5-10sqmm
Contact   materialCopper,Tin platedUpper limiting   temperature110(IEC)
Degree of   protectionIP67Fuse Specification

1A,2A,3A,3.5A,4A,5A,6A,8A

,10A,12A,15A,20A,25A,30A
