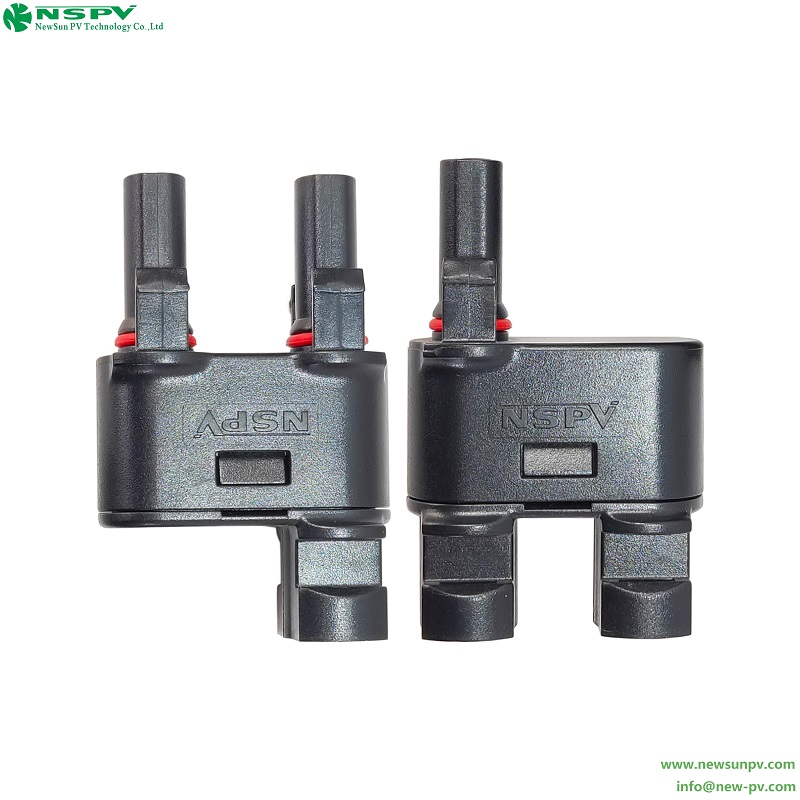

Solar 1500VDC 2 in 1 Branch Connector

  • The PV4.0 DC solar cable connector is used for solar system assemble,
  • the waterproof is IP68, it is a detachable, new type connector,
  • good stable specification, convenient to assemble.
  • INQUIRY

Product Description

PV4.0 DC Solar Connector Product Specifications

Product Specifications
Insulation material                 PPE
Rated current35A(TUV)
Rated voltage 1500VDC
Test voltage8KV(50Hz,Imin)
Typical contact resistance0.25mΩ
Contact material of solar connectorCopper, Tin Plated
Degree of protectionIP68(1m,1H)
Safety degreeII
Flames classUL94-V0
Upper limiting temperature110°c
Withdrawal force≥50N
Insertion force≤50N
Ambient temperature range-40°c until+85°c
